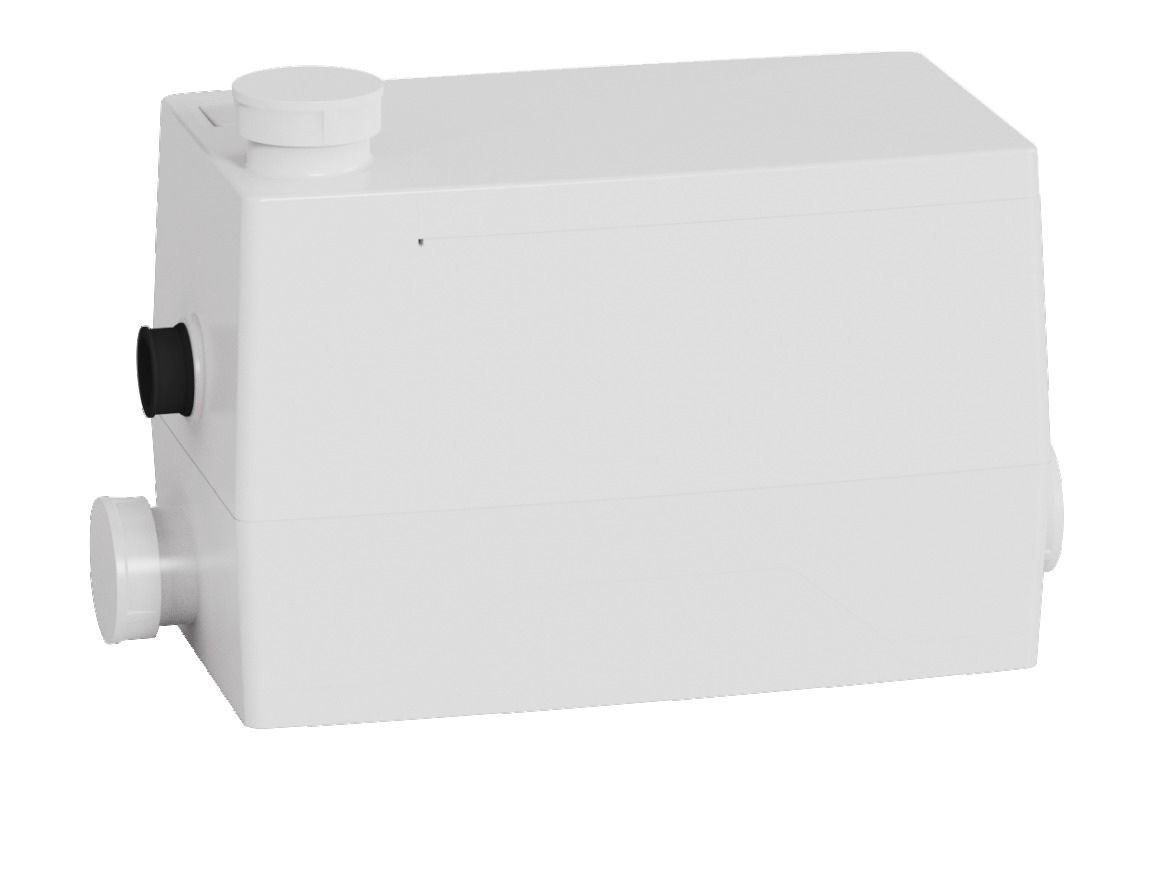

The DYU SWG D-2 is a compact macerator pump designed to make bathroom, kitchen, or laundry installations possible virtually anywhere, regardless of the location of the main drainage system. It efficiently pumps wastewater up to 8 meters vertically and 80 meters horizontally, making it an ideal solution for renovations, basement installations, and additional sanitary facilities.

Featuring three inlet connections, the SWG D-2 can handle wastewater from multiple sanitary fixtures, such as showers, washbasins, sinks, and household appliances. With a low operating noise level of only 30–40 dB(A), it delivers reliable performance while maintaining a quiet environment.

The pump is designed for easy maintenance with a convenient service panel, allowing quick replacement of the motor or pressure switch without removing the entire unit. Models equipped with the integrated PCB control system also provide advanced features, including delayed motor stop, reduced startup frequency, power cut-off protection, and voice alarm notifications, helping extend the product’s service life and improve operational reliability.

Key Benefits

• Compact design for concealed installation
• Pumps wastewater up to 8 m vertically
• Horizontal discharge up to 80 m
• Three inlet connections
• Quiet operation (30–40 dB(A))
• Easy maintenance through removable service panel
• PCB-controlled versions available with smart protection functions
• IPX4 protection rating
• Suitable for liquids up to 65°C

Typical Applications

• Bathrooms
• Shower cabins
• Washbasins
• Kitchen sinks
• Washing machines
• Utility rooms
• Basement bathrooms
• Renovation and remodeling projects

• High lifting performance — pumps wastewater up to 8 m vertically and 80 m horizontally.
• Three inlet connections — supports multiple sanitary fixtures simultaneously.
• Low-noise operation — operates at only 30–40 dB(A).
• Easy maintenance — removable service panel enables quick access to the motor and pressure switch.
• Smart PCB protection (Pro versions) — delayed stop, reduced startup frequency, power cut-off protection, and voice alarm.
• Reliable operation — suitable for continuous domestic wastewater pumping with IPX4 splash protection.

The SWG D-2 is designed for floor-mounted installation behind sanitary fixtures or inside service cabinets. The discharge pipe should be installed with the recommended slope where applicable, and adequate access should be provided for future maintenance. The minimum installation clearance shown in the manufacturer documentation is 170 mm.

Pump Type — Macerator Pump

Application — Domestic wastewater disposal

Motor Power — 350 W

Power Supply — 100–240 V, 50/60 Hz

Maximum Flow Rate — 120 L/min

Maximum Vertical Lift — 8 m

Maximum Horizontal Discharge — 80 m

Number of Inlets — 3

Inlet Size — 40–50 mm

Outlet Size — 23/28 mm

Starting Water Level — 80 mm

Maximum Liquid Temperature — 65°C

Operating Noise Level — 30–40 dB(A)

Motor Speed — 2900 RPM

Protection Rating — IPX4

Maintenance Access — Removable service panel

PCB Functions (Pro Version) — Delayed stop, reduced startup frequency, power cut-off protection, voice alarm

Dimensions (L × W × H) — 369 × 180 × 236 mm
