Specifications – Borehole pump

Technical specifications
Pump type-Submersible
Number of phases-1
Maximum power consumption-_474__ W
Maximum sand content-100g/m3
Maximum pressure-___35____m
Maximum flow-____2.7_____ m³/hour
Maximum flow, l/min-___45____
Housing material
Stainless steel
Mounting-built-in
Shaft power P2-___410___ W
Nominal voltage – 200–240 V.
Nominal pressure-___25____m
Nominal current consumption-___3.2____A
Nominal flow-____1____ m³/hour
Nominal flow, l/min-___16.7____
Country (class) of protection-IP 68
Country-Denmark, Mexico, Germany
Temperature of the pumped liquid, 1ºС-Up to 35°С
Product type-Borehole
Noise level-Up to 70 dB
Microphone frequency-Up to 10700 rpm
Network frequency-50 Hz
Number of stages-3

Warranty – ___2____ years
Item number – DWH65-1-25-0.37SI_____
Barcode – __________
Ground water _Underground water________
Cable length – 2 m
Dimensions:
Weight – 3 kg
Height – ____497_____ mm
Discharge pipe diameter – 25 mm
Width – 65 mm
Length – ____497_____ mm
Pump diameter, mm – 65
Packaging dimensions:
Product weight with packaging – ___3.5____ kg
Packaging height – 105 mm
Packaging length – 685 mm
Packaging width – 105 mm

The borehole pump __ DWH65-1-25-0.37SI _______ is designed to pump clean liquids that do not contain solid particles or fibers. It is used to supply groundwater to water supply systems of private houses, small water supply stations, and irrigation systems.
The pump operates at a variable speed, which is achieved by adjusting the frequency. As a result, the device can be configured to operate at any operating point between the minimum and maximum operating characteristics.

Download

Download Graphic

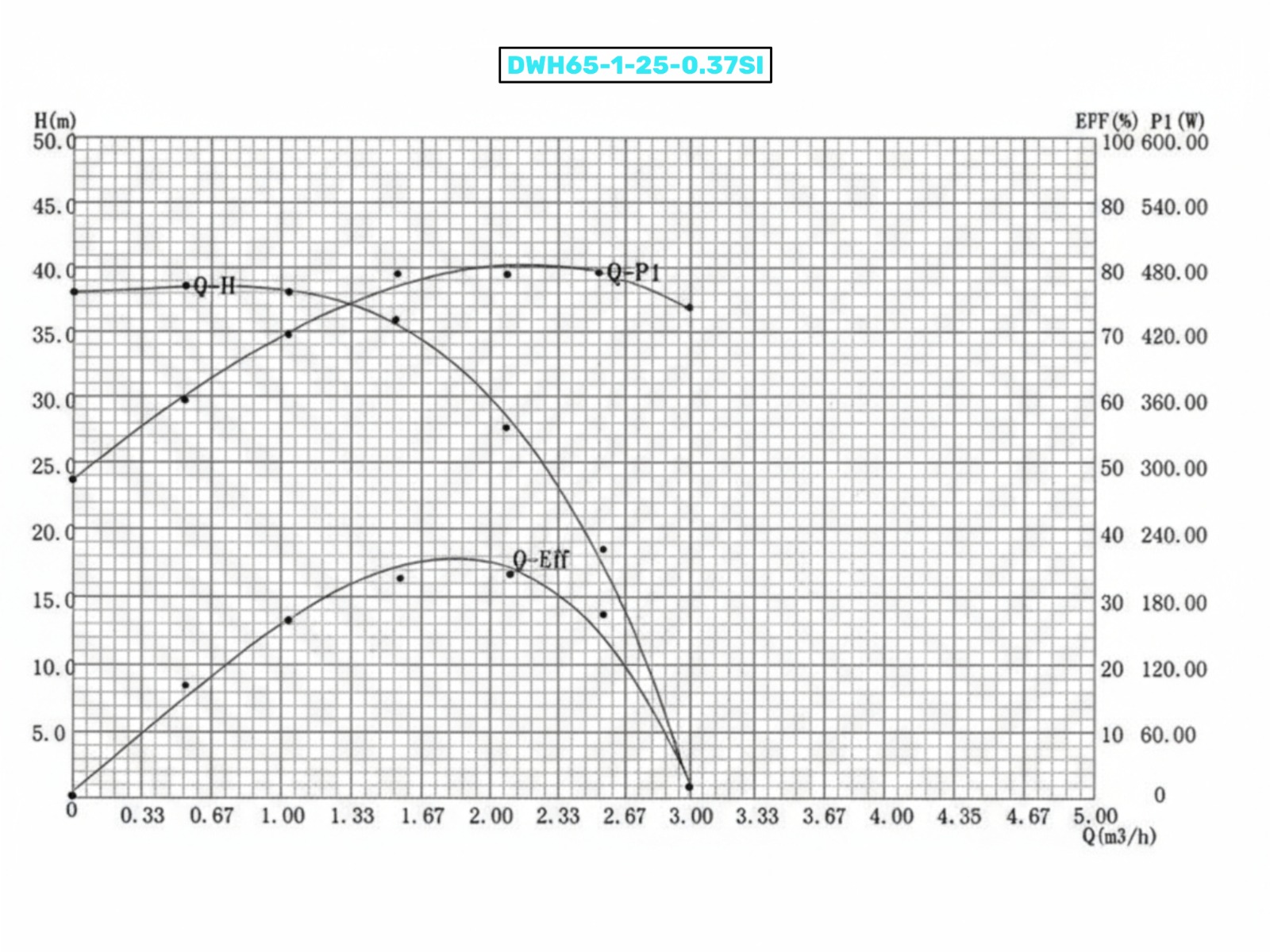

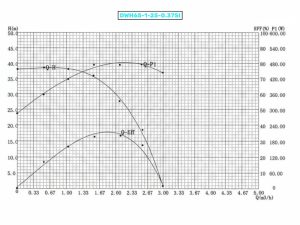

Download Curve
